Palletizing cells
VERSATILE, EXPANDABLE AND MODULAR

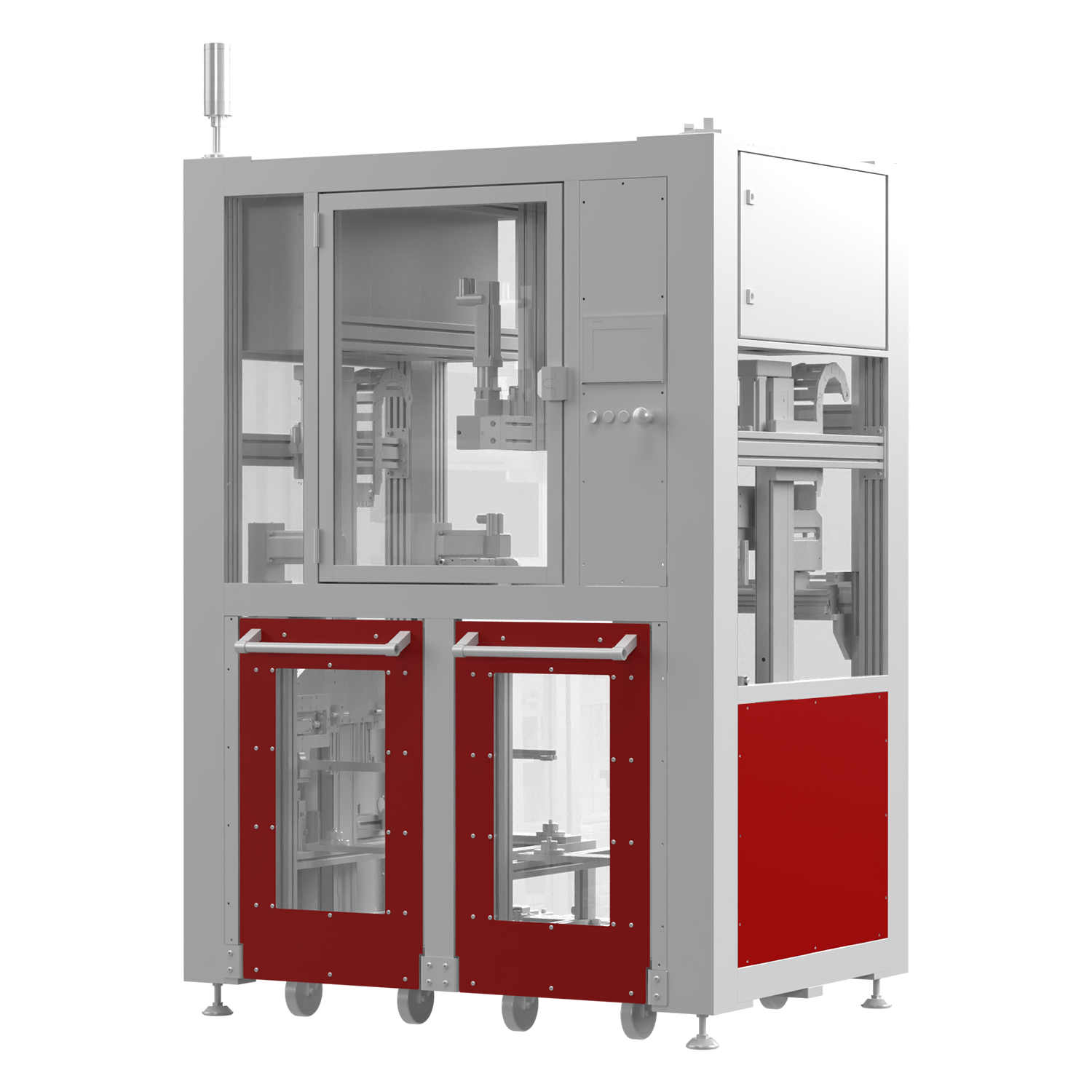

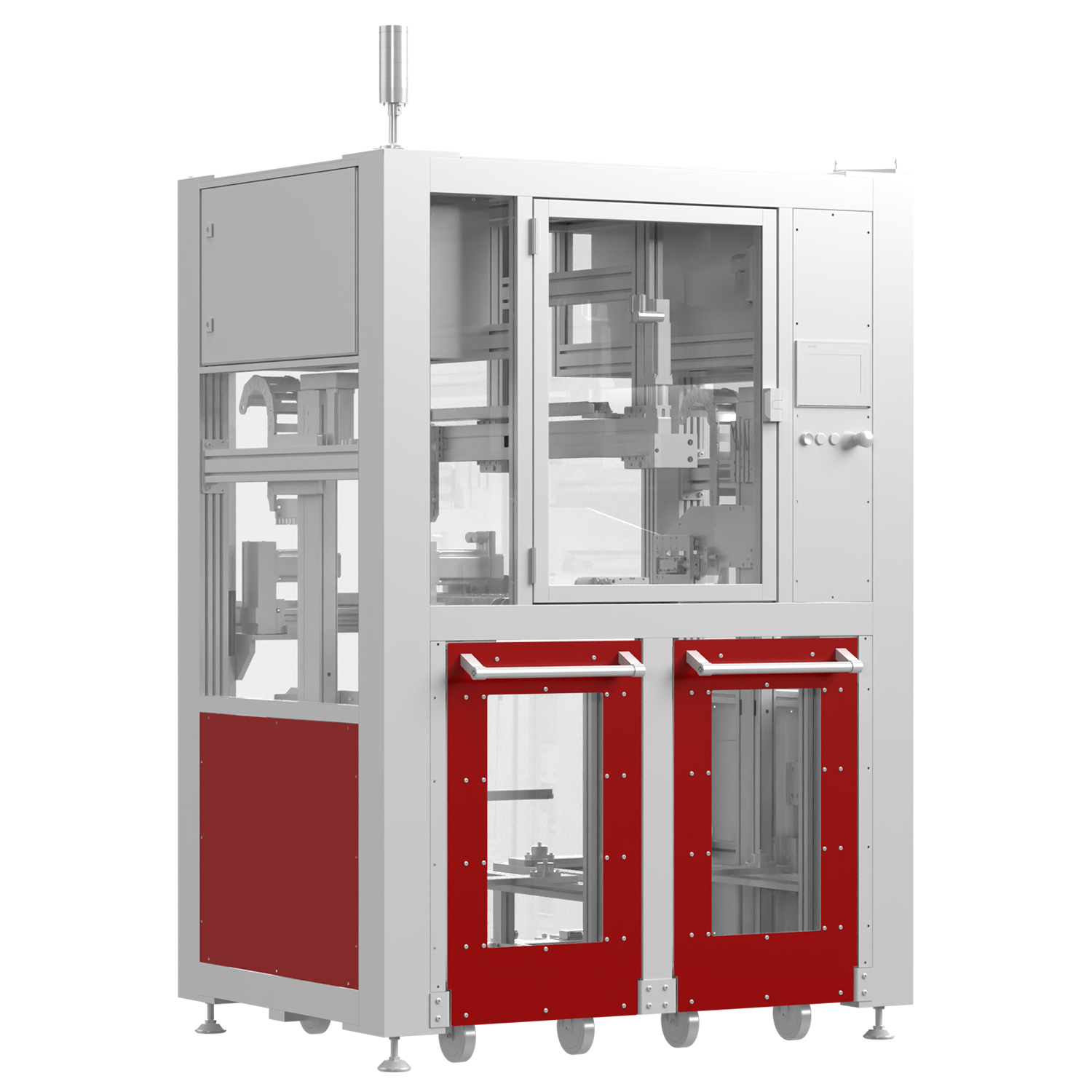

The tray palletizer from D+P is suitable for various loading and unloading tasks. The system can be extended by an intermediate position, which enables a partial inspection or NIO discharge position.
Tray data:
Size 600 x 400 mm or 400 x 300 mm
Weight: 15 kg (with products)
The basic structure consists of a stable aluminum profile tube frame. This is clad with Makrolon panes and powder-coated sheets.
The dimensions are: 1460 x 1060 x 2200 mm
Process description
- Loading and unloading side equipped with tray trolley (optionally also with infeed and outfeed conveyor to increase the autonomy time)
- Manual insertion of the tray trolley into the station
- Tray is transferred from loading side to cycle axis
- Cycle axis positions the tray to the optional handling axis

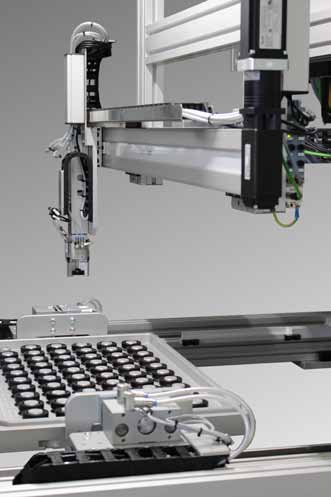

- Placement or removal of parts into or from the tray
- Empty/filled trays are stacked on the removal side
Axle and drive systems
| Drive, controller, line filter | Bosch Rexroth |
| Safety functions | SLS, STO and SOS |
| Z-axis | pneumatic, optional electric |
| 4th and 5th axis | optional |
| Energy chains | Igus |

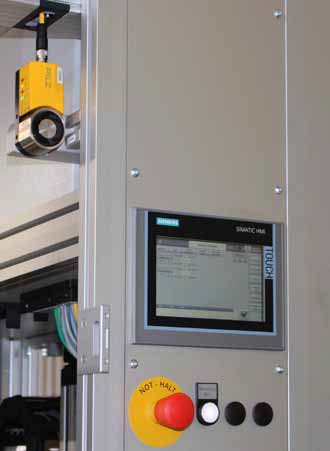

Control and electrical connections
| Control system | Siemens 1510F |
| Bus system | Profinet / Profibus |
| Control panel | Siemens TP700 Comfort |
| Safety switch | Pilz company |
| Sensors/Cameras | di-soric and di-soric solutions |
| Control cabinet | Rittal |
