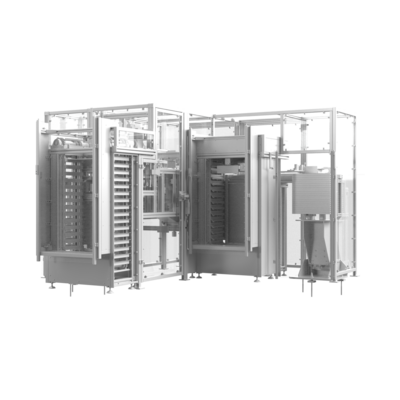

WATER JET CUTTING MACHINE FOR CARBIDE RODS
- Paternoster unit for loading the carbide blanks > continuous loading and unloading possible without process interruption
- Carbide blanks are cut to length fully automatically by water jet unit
- The bars, which are cut to length, are then separated by a wing straightening unit and gently placed on trays

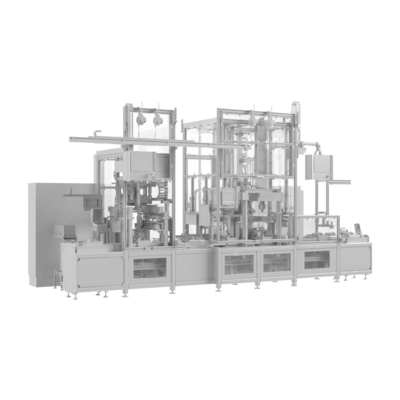

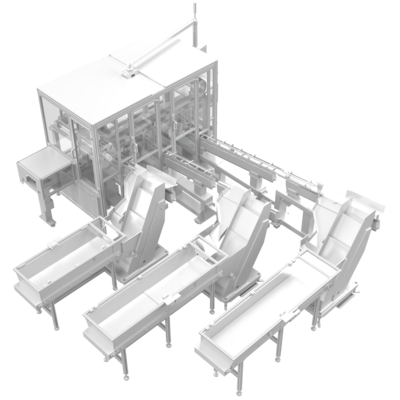

SUPPLY AND ASSEMBLY STATION FOR ALUMINIUM FLANGE
- 3 different types of components
- Cycle time: approx. 11 seconds
- Autonomy time: approx. 120 minutes
- The door can be unlocked from the belt bunker by scanning the bar code
> This prevents the worker from loading the wrong components - By means of an upstream camera system, the position of the aluminum flange is determined and transmitted to the control system.
- The assembly process is carried out by means of electric 2 axis gantry and integrated 360 turning unit
- RFID read/write unit at the system infeed is used to determine which component is required
> uninterrupted production from batch size 1 onwards

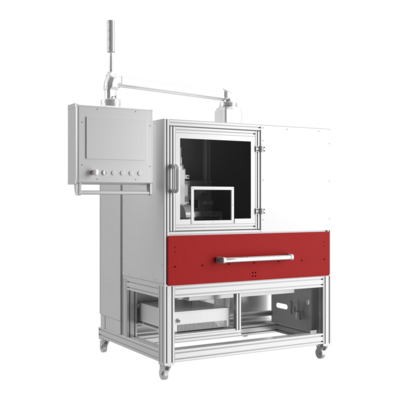

LASER STATION FOR CARBIDE RODS
- Laser station for carbide rods
- Diameter range: 5-20 mm
- Length: 140-850 mm
- Manual loading via drawer system by the operator
- Electric rotary unit brings marking area into laser field of view
- Integrated counter-reading of the laser marking
CUTTING AND SEPARATING MACHINE FOR CARBIDE RODS
- Manual width adjustment for trays or workpiece carriers possible (optionally this can also be done automatically by recipe selection on the touch panel)
- Loading and unloading side via paternoster units
- The two paternoster units can be loaded and unloaded during operation (no machine interruption during loading and unloading)
- Removal belt automatically adjusts to extruder speed based on sensor technology used
