Measuring/Testing
Our services also include high-quality testing and measuring equipment. Measuring and testing components and products often requires much more know-how and technical sophistication than their actual manufacture. For this reason, the requirements for the development and production of such systems are correspondingly high.
Here, too, you benefit from our decades of experience and stringent quality controls, which enable us to guarantee maximum accuracy and repeatability in the performance of a wide range of tests and measurements for every project.
Feel free to contact us without obligation and free of charge!
phone +49 9081 27593 0 mail MAIL
Project examples
MEASURING STATION FOR INDEXABLE INSERTS
- Measuring station for indexable inserts
- Cycle time: 8 seconds
- Stacking magazine for customer blisters
- Recipe selection by the operator
- Electric rotary indexing table for component transport into respective test station
- Fast and highly precise measurement by means of profile projector using transmitted light method
- The profile shape of the component is recorded by laser triangulation
- Storage of tested inserts in sales packaging
- Revolver magazines for sales packaging can be emptied and loaded during ongoing test operation
TESTING EQUIPMENT FOR WOODEN BLOCKS
- 100% control for wooden blocks
- Different component shapes (cube, cuboid, triangle, crescent, etc.)
- Components are checked for burns, chipping, rough spots, etc. and selected in IO and NIO
- Cycle time: 180-200 pieces/minute
- A total of six high-resolution camera systems for each side of the building blocks
- Integrated lighting system adapted to the module color
SCREWDRIVING AND TESTING EQUIPMENT FOR DRILL HEADS
- Fully automatic testing and screwdriving station with cycle times < 30 seconds
- Recipe selection on the touch panel
- Camera inspection for component position (Coordinate determination X and Y position)
- Camera inspection of the front and rear of the component
- High resolution camera unit (21 MPx)
- Thread testing (torque and depth testing)
- Automatic screwdriving process incl. automatic screw feed
- Pneumatic NIO selection
- Electrical IO ejection in trays
MANUAL TEST STATIONS
- Manual length adjustment by a pneumatic handle
- Focusing of the respective component type is done by an electric actuator
- Carbide blanks are measured fully automatically with a high-resolution camera unit
- Ergonomic manual workstation through electrical height adjustment

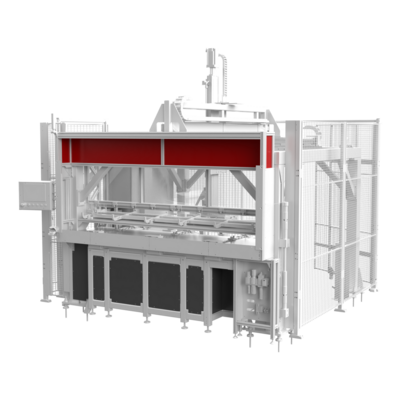

TESTING EQUIPMENT FOR THREADED INNER AND OUTER PIPE
- Manual loading of the tubes by the worker
- Automatic thread testing for inner tube and outer tube
- Point probe incl. electrical feed movement
- Automatic handling for IO and NIO storage
