Dispensing
Especially for your applications, we offer you a wide range of solutions for fully automatic uninterrupted bead dosing or even semi-automated dispensing and filling systems that enable the precise dosing and application of viscous media onto surfaces or into containers.
Feel free to contact us without obligation and free of charge!
phone +49 9081 27593 0 mail MAIL
Project examples

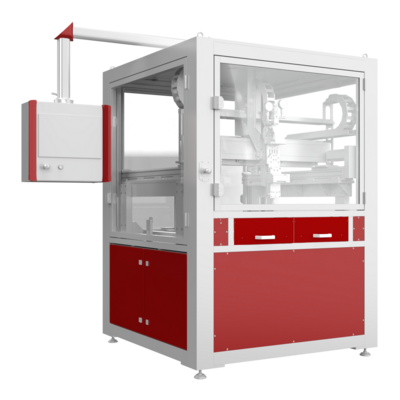

NC DOSING PORTAL
- Due to the electrical 3-axis gantry with integrated interpolation capability, any contours (linear, point, circular motion) can be plotted
- The creation of new contours can be done by means of externally created CNC programs or by importing DXF files
- An interaction between metering and axle speed is given to ensure a clean and uniform metering bead

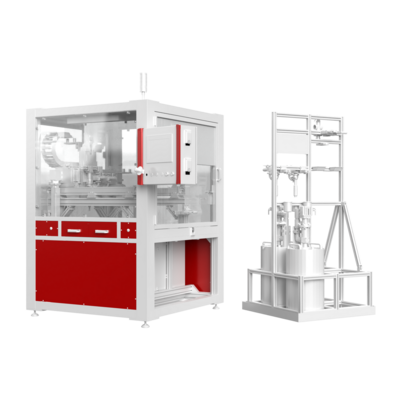

CASTING CELL FOR DAMPER
- Electric 3-axis gantry for moving the metering unit (dispensing unit)
- Double 1C casting unit incl. material supply and flow sensor
- Dosing needle monitoring by means of laser measuring unit
- Dual drawer system for continuous silicone oil casting
- Simple recipe management as well as clearly structured and user-friendly visualization

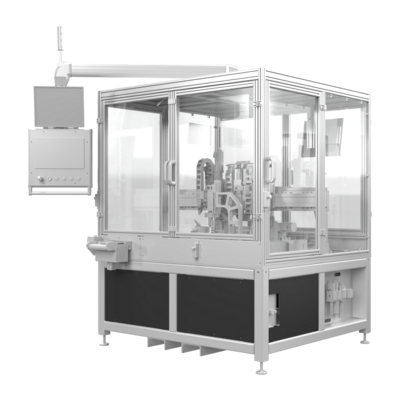

LOT APPLICATION AND PLACEMENT SYSTEM
- Fully automatic soldering and insertion system for indexable inserts
- Cycle time: 11 seconds
- Feeding of indexable insert bodies by means of workpiece carrier
- Magnetic gripper system positions base body on rotary indexing table
- Automatic carbide seat monitoring by means of sensors
- Automatic dosing application of very small quantities (punctual or linear)
- Camera system determines rotational position of carbide cutting edge
- Precise loading of the carbide cutting edge to 0.03 mm
- Finished part deposit by means of centric gripper
