DOUBLE SCREW STATION FOR ALUMINUM LIDS
- 3 different types of components
- Cycle time: approx. 11 seconds
- The assemblies are screwed together by two electrical 3 axis gantries incl. screw spindle
- A leading hold-down system provides torque support during the bolting process

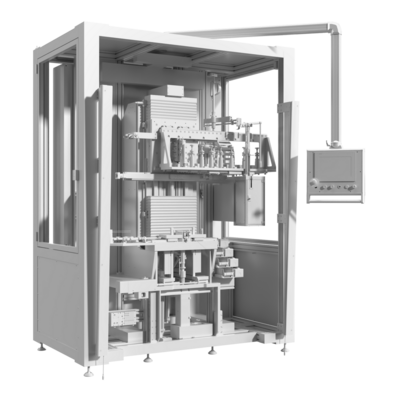

JOINING STATION FOR SERVO MOTORS
- Designed for different sizes and lengths
- Worker guidance through visualization
- Force, displacement and torque monitoring of the assembly processes
- Screw technology integrated into the assembly process
- Automatic entrainment and cutting to length of the strands during the joining process
- Partially automated unloading
AUTOMATIC STATION ROTOR MOUNTING
- Designed for different sizes and lengths
- Force, displacement and torque monitoring of the assembly processes
- Pole check for each rotor pack
> Optical detection in the contact area for the operator - Worker guidance through structured visualization
- Additional pole check in the machine to start the press-in only if the rotor pack is correct
- Rotating unit in lower component mount indexed by the necessary angular dimension for each rotor pack
